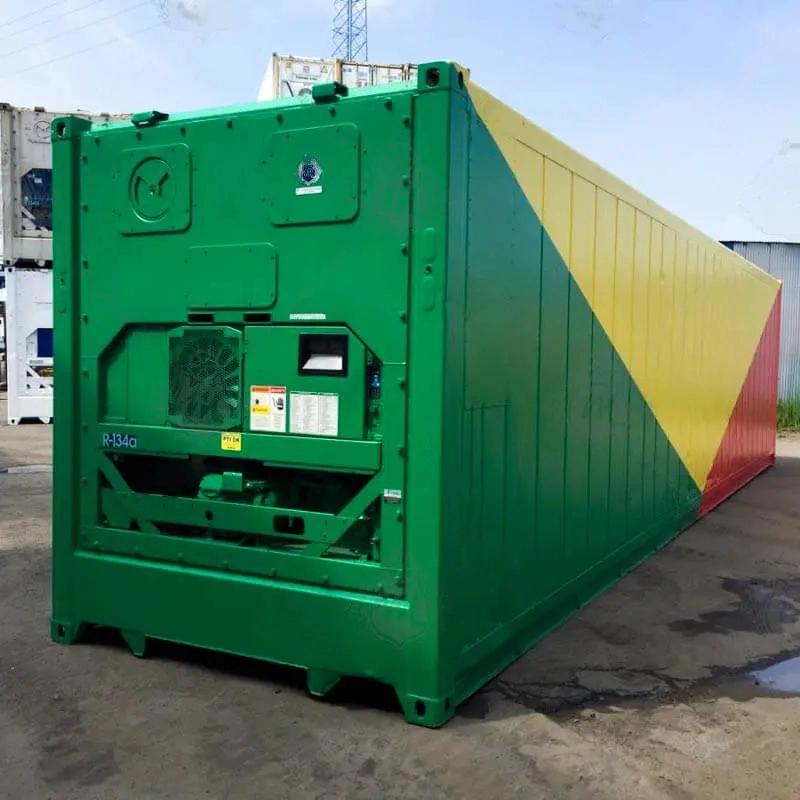

This 40ft high cube reefer container is a used cargo worthy unit with a valid CSC badge, R-134a refrigerant, and a 380V/32A power connection. It maintains temperatures from -25°C to +25°C at a single set point and draws 6–10 kW/h during active refrigeration. Furthermore, the high cube profile provides 2,698mm of internal clearance — an extra 305mm over a standard 40ft reefer. In addition, the ISO type code 45R1 confirms this unit is fully certified for active intermodal refrigerated freight movements by road, rail, and sea.
40ft High Cube Reefer Container Specifications
Condition: Cargo Worthy (Used) — Certified for active international shipping.
External Dimensions
| Dimension | Millimetres | Feet / Inches |
|---|---|---|
| Length | 12,192 mm | 40′ 0″ |
| Width | 2,438 mm | 8′ 0″ |
| Height | 2,896 mm | 9′ 6″ |
Internal Dimensions
| Dimension | Millimetres | Feet / Inches |
|---|---|---|
| Length | 12,032 mm | 39′ 5″ |
| Width | 2,352 mm | 7′ 8″ |
| Height | 2,698 mm | 8′ 10″ |
Door Opening
| Dimension | Millimetres |
|---|---|
| Width | 2,340 mm |
| Height | 2,585 mm |
Weight & Capacity
| Spec | Value |
|---|---|
| Internal Volume | 76.4 m³ |
| Empty Weight | 4,550 kg |
| Max Additional Load | 29,450 kg |
| Max Total Weight | 34,000 kg |
Refrigeration & Power
| Spec | Value |
|---|---|
| Temperature Range | -25°C to +25°C |
| Refrigerant | R-134a |
| Power Connection | 380V / 32A |
| Operating Voltage | CEE 50Hz |
| Power Draw | 6–10 kW/h |
| Noise Output | 63–78 dB at 1m distance |
Certification & Compliance
| Spec | Value |
|---|---|
| Condition | Cargo Worthy (Used) |
| CSC Badge | Valid |
| ISO Type Code | 45R1 |
| ISO Group Code | 45RT |
Why Choose a 40ft High Cube Reefer Container
A 40ft high cube reefer container gives cold chain operators 76.4 m³ of temperature-controlled internal volume in a single ISO-certified unit. The 2,698mm internal height accommodates hanging meat rails, tall pharmaceutical racking, and full-height pallet stacks that a standard 40ft reefer at 2,393mm won’t clear. As a result, abattoirs, seafood exporters, pharmaceutical distributors, and agricultural cold chain operators get the volume and clearance they need in one unit rather than splitting loads across two smaller containers. Furthermore, the R-134a refrigerant system operates cleanly and efficiently on 380V/32A three-phase supply — standard at most Australian food processing facilities and cold storage sites.
The valid CSC badge and ISO 45R1 type code confirm this unit is accepted at all major Australian and international ports for active refrigerated freight movements. Moreover, the cargo worthy condition keeps the price point well below a new one-trip reefer while retaining full certification for road, rail, and sea transport. In addition, the unit draws 6–10 kW/h during active refrigeration — a manageable power requirement for most site electrical infrastructure.
Key Features
- Cargo worthy — valid CSC badge, ISO 45R1 certified
- High cube profile — 9’6″ external, 8’10” internal height
- 76.4 m³ internal volume — maximum 40ft reefer capacity
- R-134a refrigerant — clean, efficient operation
- -25°C to +25°C temperature range — full freezer to chiller
- 380V / 32A power connection — standard three-phase supply
- 6–10 kW/h power draw — manageable site electrical load
- 29,450 kg max payload — full commercial load capacity
- Suits hanging meat rails and tall racking — high cube clearance
Browse Refrigerated Containers
Additionally, 20ft refrigeration containers and non-running insulated reefer units are available for static cold storage applications at lower price points. Browse our full range of refrigerated containers to compare sizes, refrigerant types, and price points in stock.
This container meets ISO 668 Series 1 freight container standards. Therefore, it suits active refrigerated freight movements across Australian road, rail, and sea transport networks.
Enquire About This 40ft High Cube Reefer Container
Available for delivery Australia-wide. Reply with your postcode and power supply configuration to receive a full delivered price.
